Driving Magnetron with Pedestal Pulse

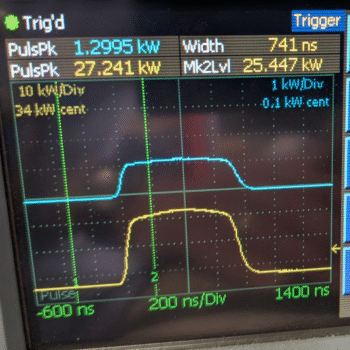

By contract, we are not allowed to give too many details, but the photos give an idea of what we are doing. It shows a voltage pulse across one tube and the current drawn as it produces a megawatt in just 90nS at 3-5GHz. We are working on even higher power and shorter pulses.
